SPECIFICATIONS

Model	LT-3015	LT-4020
power(KW)	1kw-20kw	1kw-20kw
*Cutting Range(LW)**	*30001500mm**	*40002000mm**
Z axis Track	150mm	150mm
Positioning Accuracy	±0.04mm	±0.04mm
Repeatability	±0.02mm	±0.02mm
Maximum Position speed	120m/min	120m/min
Maximum Acceleration	1.2G	1.2G
Power Requirement	380V,50/60Hz	380V,50/60Hz
Working Temperature	5C-45C	5C-45C
Power supply Protection Level	IP54	IP54
Driven System	Imported Double Drive	Imported Double Drive

Sheet Metal Cutting Specialist "Compact integration with less space occupancy "Faster Investment Returns
"We bring to you the revolution of laser cutting technology and creating a new era of Sheet Metal Processing".

Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

Steel Plate Weld Machine Frame

It is welded by heavy steel plate, the current mainstream bed structure, high stability;Effect force annealing treatment, high mechanical strength, not easy to deform Reinforcing ribs are arranged inside the bed to increase the strength and tensile resistance of the bed, and effectively avoid deformation of the bed The weight of the bed, the small vibration of the machine, and the good shock resistance ensure the improvement of cutting accuracy.

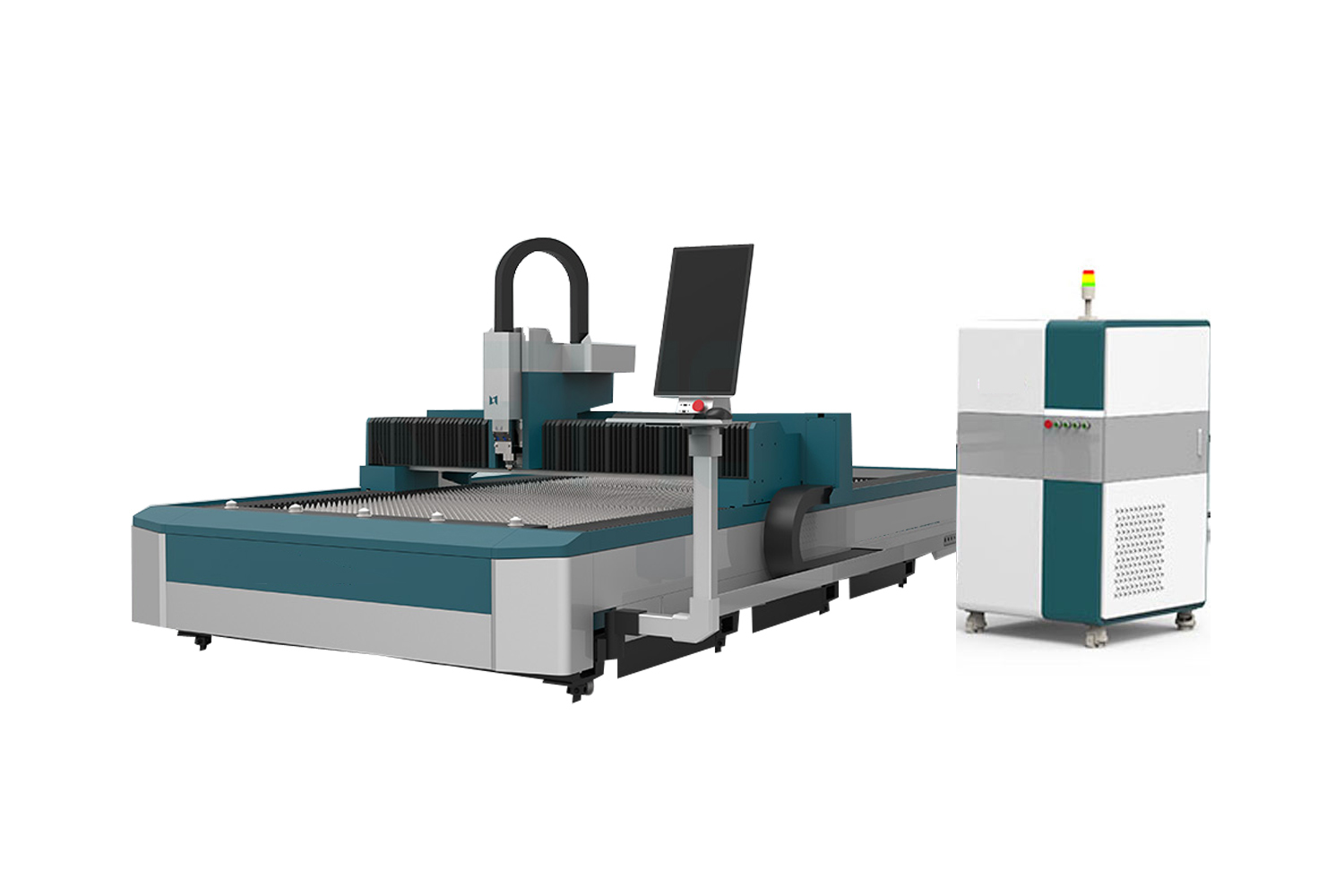

FIBER LASER CUTTING MACHINE OPEN TYPE SINGLE TABLE
